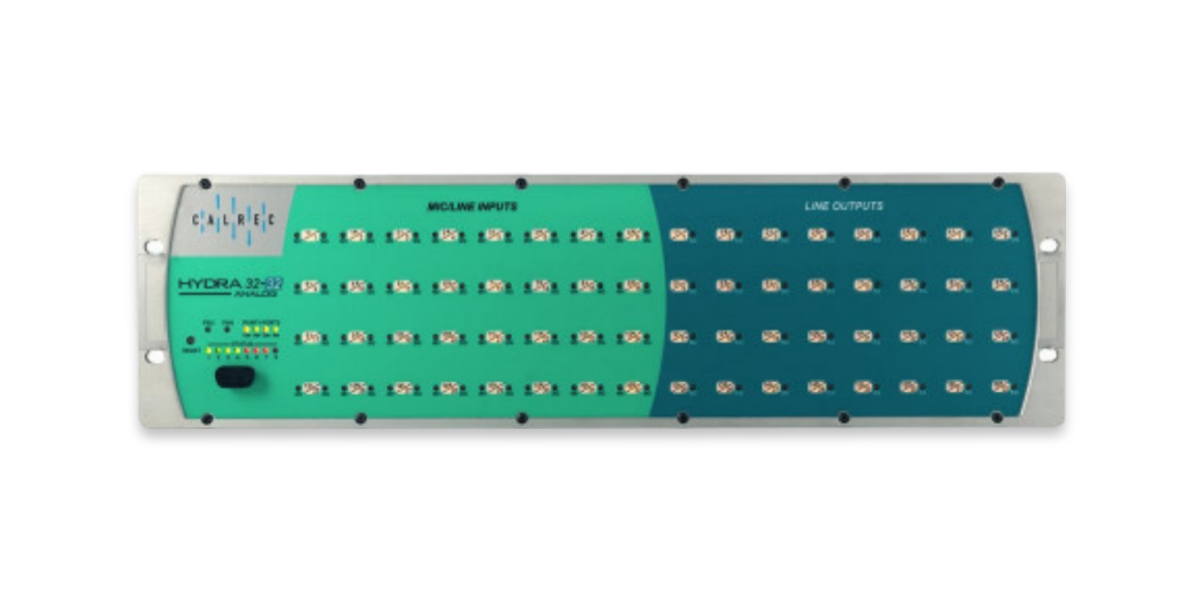

Calrec Hydra2 AE5743-2 32/32 – EDAC A

Format Analog
Inputs 32 Mic / Line
Outputs 32 Line Level
Audio Connectors 38 pin Male EDAC (Inputs & Outputs)
GPIO compatible Yes
Height 3U
Width 19” rackmount (483 mm)
Depth 9” (230 mm)
Depth inc rear mating connectors 12” (300 mm)
Approx Weight 11.5 lbs (5.2 kg)
Input Power
100-240 V AC
1.05-0.51 A RMS
50/60 Hz
Acoustic Noise 27 dB-SPL A-Weighted, 1 m from source
