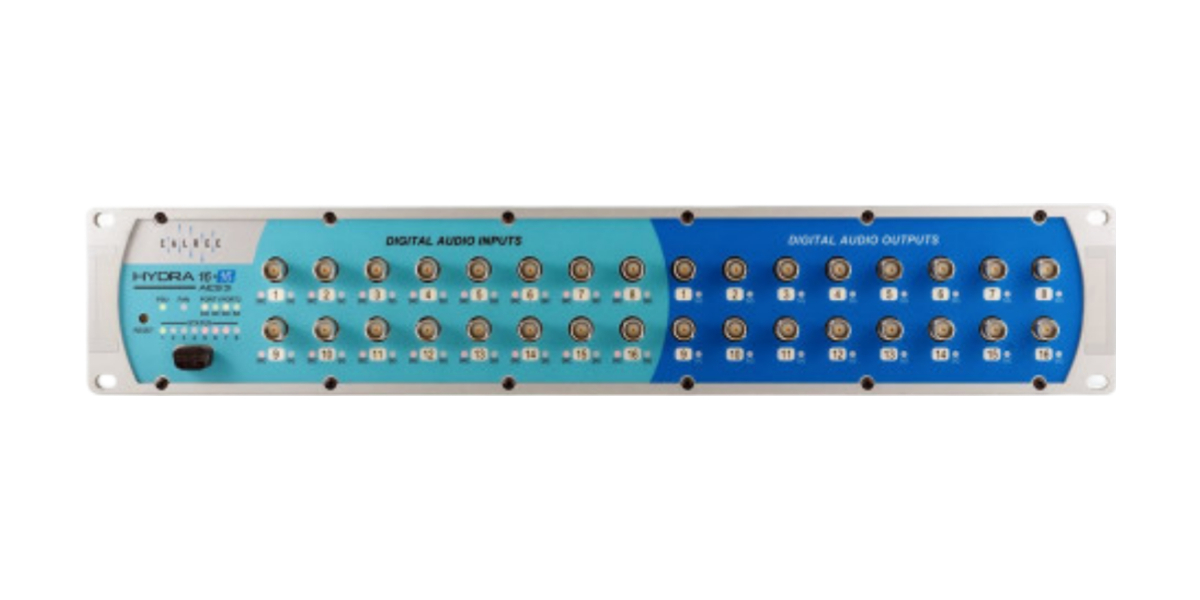

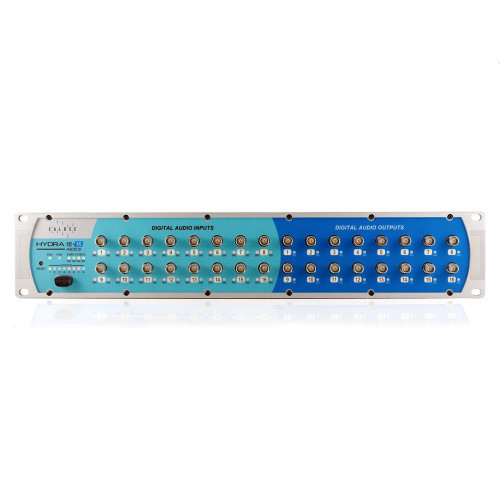

Calrec Hydra2 JB5606-3 16/16 – BNC D

Format Digital AES3 unbalanced
Inputs 16
Outputs 16
Audio Connectors BNC
Impedance 75 Ω
Input Signal Range 0.3–1.2 V Pk–Pk
Output Signal 1 V Pk–Pk (nominal)
Signal to Noise Ratio (SNR) 22 Hz to 20 kHz – Better than -120 dB
Digital to Digital (AES3) Distortion -1 dBFS, 20 Hz to 10 kHz – Better than 0.0001%
Digital to Digital (AES3 with SRC)
Distortion -1 dBFS, 20 Hz to 10 kHz – Better than 0.0002%
Fader Off Isolation 22 Hz to 22 kHz – Better than -132 dB
Sample rate conversion (SRC) 24-Bit switchable on all AES inputs
SRC THD+N -117 dB @ 1 kHz, 0.00014%
GPIO compatible Yes (SW5739)
Height 2 U
Width 19” rackmount (483 mm)
Depth 9” (230 mm)
Depth inc rear mating connectors 12” (300 mm)
Approx Weight 8.6 lbs (3.9 kg)
Input Power 100–240 V AC, 0.24–0.13 A RMS, 50/60 Hz
